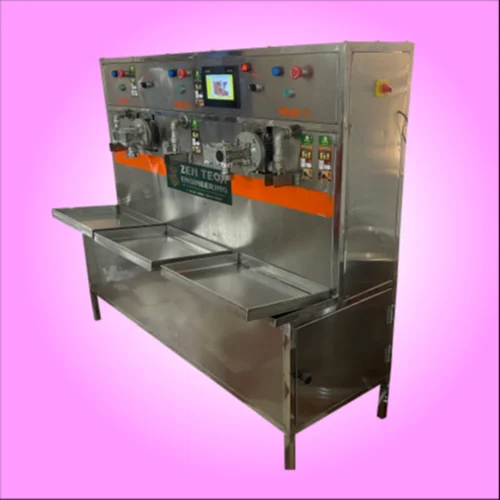

Send InquiryBottle Tripple Filling Double Capping Machine
MOQ : 1 Unit
Bottle Tripple Filling Double Capping Machine Specification
- Filling Range
- 50 ml to 1000 ml (customizable)
- Usage
- Industrial Automatic Liquid Packaging
- Features
- Triple head filling, dual capping for enhanced efficiency, touch screen operation
- Power Supply
- 3 Phase
- Application
- Liquid bottle filling and capping for pharmaceuticals, beverages, cosmetics, chemicals
- Noise Level
- < 75 dB
- Type
- Bottle Tripple Filling Double Capping Machine
- Material
- Stainless Steel (SS 304/316)
- Feature
- High precision filling, double capping mechanism, no bottle-no fill sensor, non-drip system, adjustable speed
- Auxiliary Packaging Machine Type
- Liquid Filling and Capping Machine
- Capacity
- 3000-5000 bottles per hour (subject to liquid and bottle size)
- Computerized
- Yes
- Automatic Grade
- Automatic
- Control System
- PLC-Based Control Panel
- Drive Type
- Electric
- Power
- 3-5 kW
- Voltage
- 220V/380V, 50/60Hz
- Weight (kg)
- Approx. 700-900 kg
- Dimension (L*W*H)
- 3250 mm x 1400 mm x 2100 mm (approximate)
- Color
- Silver/Grey
- Sealing Type
- Screw/ROPP Cap Sealing
- Filling Accuracy
- 1%
- Conveyor Speed
- Adjustable, up to 15 meters/minute
- Number of Filling Heads
- Triple
- Compatibility
- PET, glass, and HDPE bottles
- Bottle Height Range
- Up to 300 mm
- Number of Capping Heads
- Double
- Air Pressure Requirement
- 6 bar (for pneumatic functions)
- Cleaning System
- CIP (Clean-In-Place) compatible
- Bottle Diameter Range
- Up to 100 mm
Bottle Tripple Filling Double Capping Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 10 Units Per Month
- Delivery Time
- 2-10 Days
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Filling Machine Category

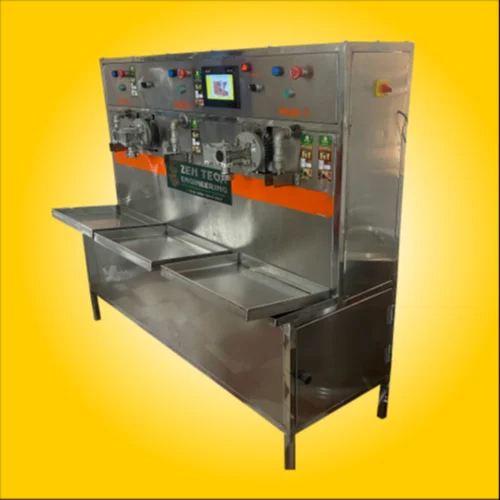

Bottle Tripple Filling Single Capping Machine
Minimum Order Quantity : 1 Unit
Material : Stainless Steel
Automatic Grade : Automatic
Noise Level : <70 dB
Dimension (L*W*H) : 2200 x 1100 x 1900 mm
Computerized : Yes

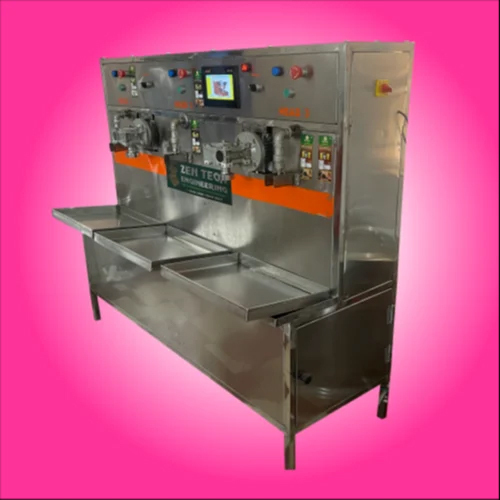

Bottle Double Filling Single Capping Machine
Minimum Order Quantity : 1 Unit
Material : Stainless Steel
Automatic Grade : Automatic
Noise Level : 70 dB
Dimension (L*W*H) : 2000 x 900 x 1800 mm
Computerized : Yes

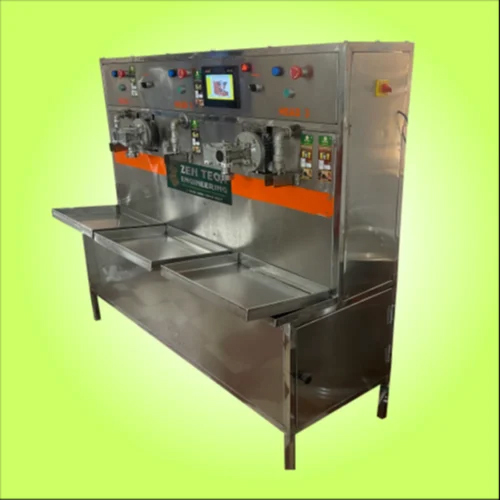

Bottle Single Filling Single Capping Machine
Minimum Order Quantity : 1 Unit
Material : Stainless Steel
Automatic Grade : Automatic
Noise Level : <70 dB
Dimension (L*W*H) : 2000*1000*1800 mm
Computerized : Yes
